ELECTRICAL SPECIFICATIONS
MODEL RF BAND COUPLING
VALUE
(dB)		 MEAN
COUPLING
ACCURACY
+dB MAX.		 COUPLING
FLATNESS
+dB MAX.		 INSERTION
LOSS
dB MIN.		 DIRECTIVITY
dB MIN.		 MAIN
LINE
VSWR
MAX.		 SECONDARY
LINE VSWR
MAX.
FREQUENCY
GHz		 EIA
WAVEGUIDE
CPKX-XX 18.0 - 26.5 WR-42 3, 6, 10, 20 0.7 0.7 0.8 40 1.05:1 1.10:1
CPRX-XX 26.5 - 40.0 WR-28 3, 6, 10, 20 0.7 0.7 0.8 40 1.05:1 1.10:1
CPQX-XX 33.0 - 50.0 WR-22 3, 6, 10, 20 0.7 0.7 0.8 40 1.07:1 1.10:1
CPUX-XX 40.0 - 60.0 WR-19 3, 6, 10, 20 0.8 0.7 1.0 40 1.08:1 1.10:1
CPVX-XX 50.0 - 75.0 WR-15 3, 6, 10, 20 0.9 0.7 1.2 35 1.10:1 1.12:1
CPEX-XX 60.0 - 90.0 WR-12 3, 6, 10, 20 0.9 0.7 1.5 32 1.10:1 1.15:1
CPWX-XX 75.0 - 110.0 WR-10 3, 6, 10, 20 0.9 0.7 1.5 32 1.10:1 1.15:1
CPFX-XX 90.0 - 140.0 WR-8 3, 6, 10, 20 1.1 0.7 2.2 30 1.15:1 1.22:1
CPDX-XX 110.0 - 170.0 WR-6 3, 6, 10, 20 1.3 0.7 2.5 28 1.15:1 1.22:1
MECHANICAL SPECIFICATIONS
MODEL A INCHES B IN. C IN. D IN. E IN. FLANGE TYPE
3 dB
COUPLING		 6, 10, 20 dB
COUPLING
CPKX-XX -- 8.25 1.05 1.25 0.69 1.33 UG-595/U
CPRX-XX 8.50 6.25 0.94 1.10 0.69 1.33 UG-599/U
CPQX-XX 7.30 5.50 1.30 1.65 0.83 1.33 UG-383/U
CPUX-XX 6.25 5.50 1.30 1.65 0.83 1.33 UG-383/UM
CPVX-XX 5.00 3.85 0.86 1.22 0.61 1.20 UG-385/U
CPEX-XX 4.50 3.85 0.86 1.22 0.61 1.20 UG-387/U
CPWX-XX 3.85 3.50 0.86 1.22 0.61 1.20 UG-387/UM
CPFX-XX 3.50 3.50 0.86 1.22 0.61 1.20 UG-387/UM
CPDX-XX 3.10 3.10 0.86 1.22 0.61 1.20 UG-387/UM
ORDERING INFORMATION:
       MODEL No. CP-X-XX
  FREQUENCY BAND __^^ ^
                    | |   03 =  3 dB COUPLING
A = 3 PORT COUPLER _| |__ 06 =  6 dB COUPLING
B = 4 PORT COUPLER        10 = 10 dB COUPLING
                          20 = 20 dB COUPLING

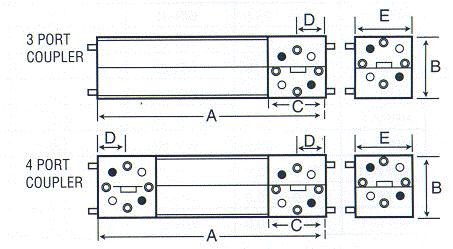

OUTLINE DRAWINGS
